| Place of Origin: | China |
| Brand Name: | MAXPOWER |
| Certification: | CE,ROHS, UL,SGS,REACH |
| Model Number: | 14500 1000mAh 3.7V |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton / Industrial bulk pack |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500, 000PCS/week |
| Material: | Lithium Ion | Capacity: | 800mAh |
|---|---|---|---|
| Voltage: | 3.7V | Initial Iedance: | Max:70mΩ |
| Weight: | 20.2g | Quick Discharge Current: | 1C Discharge |
| Maximum Discharge Rate: | 3C Discharge | ||
| Highlight: | 14500 Lithium Ion Rechargeable Battery Cell |
||
OEM project for consumer electronics
Lithium Ion / Li-ion / Lithium-ion battery cell has the high energy density and it's most popular cell using in the current market.
|
MAXPOWER INDUSTRIAL CO.LTD - 14550 3.7V 1000mAh battery specification |
Quick details:
| NO | ITEMS | SPEC |
| 1 | Pack supplier | Max power industrial co.,ltd |
| 2 | Diameter*Height: (Lithium Ion 16650 size) | 14.5*49.5mm |
| 3 | Nominal Voltage: | 3.7V |
| 4 | Nominal Capacity: | 800mAh |
| 5 | Minimum capacity | 780mAh |
| 6 | quick charge current | 800mA(1C) |
| 7 | quick discharge current |
800mA( 2C) |
| 8 | max pulse discharge current | 2400mA(3C) |
| 8 | max constant charging current: | 800mA |
| 9 | max discharging current: | 800mA |
| 10 | Weight | Approx: 20.2g |
| 11 | Discharge cut off voltage: | 2.5V |
| 12 | Storage voltage: | 3.6-3.85V |
| 13 | Standard charging ways: | CC / CV |
| 14 | Cycle life | >300times |
| 15 | battery cell | Li-ion / Lithium Ion rechargeable |

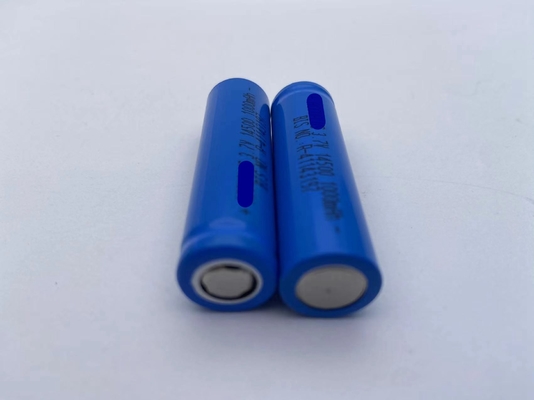

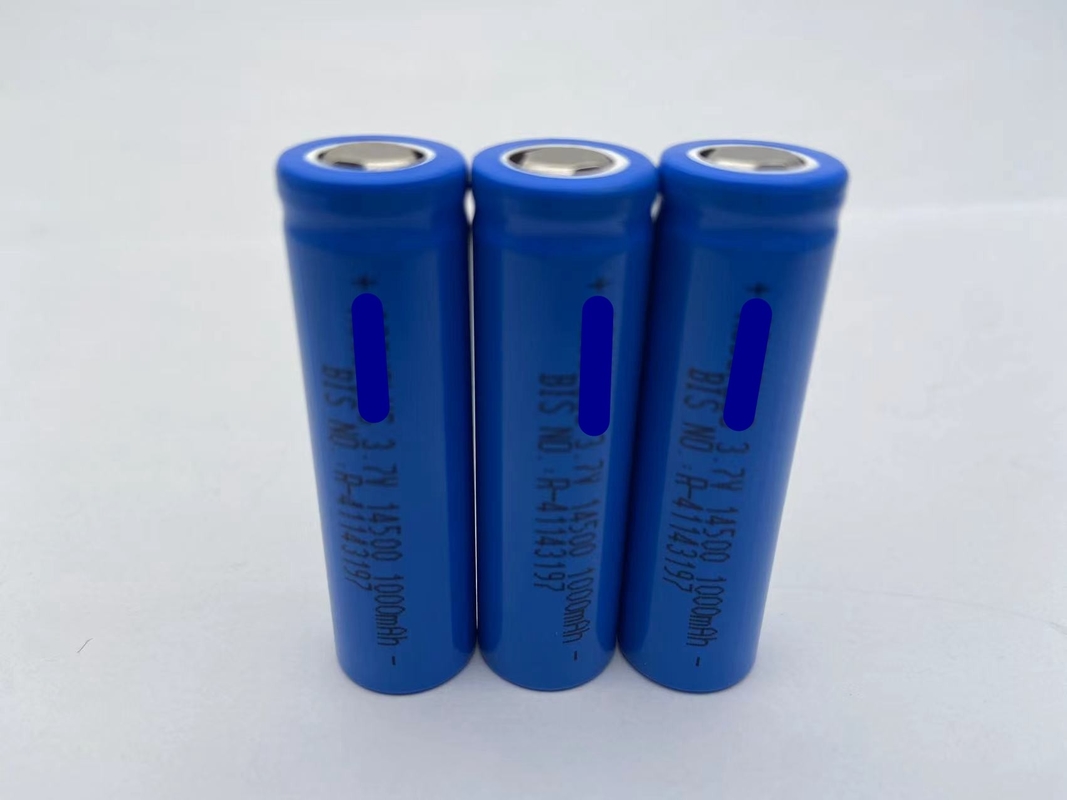

BIS certified Li14500C 800mAh 3.7V Lithium Ion Rechargeable Batteries draw:
Customized terminals for your choice:
The lithium battery advantage description:
Safety characteristic :
Over charge, over discharge, hot oven test, High Teerature Test , low teerature test, humidity test,
vibration test, drop test, collisions, crush, short circuit, iact, thermal shock, constant da performance
14500 3.7V 1000mAh battery pack application:
The application areas of 14500 batteries mainly include the following aspects:
1. Portable small electronic products: The 14500 battery is very suitable for use in portable small electronic products such as portable fax machines, printers, power tools, etc. due to its small size and high energy density.
2.Communication equipment: In terms of communication equipment, 14500 batteries are commonly used in PHS telephones, walkie talkies, and other devices to provide stable power supply.
3. Information equipment: For laptops, PDAs, portable fax machines, and other devices, the 14500 battery can provide long-term use, meeting the needs of mobile office and data processing.
4.Electric tools: In the field of electric tools, 14500 batteries are commonly used in drills, electric equipment, etc. to provide efficient power support.
5.Transportation vehicles: 14500 batteries are also widely used in electric vehicles, electric motorcycles, electric bicycles and other transportation vehicles as auxiliary power sources or main power sources.
6. Mining lamps and automatic tracking instruments: In mining lamps and automatic tracking instruments, 14500 batteries can provide stable and reliable power supply, suitable for various mining environments.
7.Solar energy storage and toys: In addition, the 14500 battery is also suitable for power solutions for mobile products such as solar energy storage systems and toys.
These application areas demonstrate the widespread use and importance of 14500 batteries in various devices and systems
More LI-ION CELL MODEL LIST, welcome to inquire:
| Series | Model | Volt. | Capacity | Size |
| Lithium cobalt oxide battery 1-3C |
18650C-2600mAh | 3.7 | 2600 | 18.0 X 65.2 |
| 18650C-2400mAh | 3.7 | 2400 | 18.0 X 65.2 | |
| 18650C-2200mAh | 3.7 | 2200 | 18.0 X 65.2 | |
| 18650C-2000mAh | 3.7 | 2000 | 18.0 X 65.2 | |
| 18620C-2000mAh | 3.7 | 2000 | 18.0 X 62.0 | |
| 18500C-1600mAh | 3.7 | 1800 | 18.0 X 65.2 | |
| 18350C-900mAh | 3.7 | 900 | 18.0 X 65.2 | |
| 14500C-800mAh | 3.7 | 800 | 13.9 X 50.2 | |
| 14280C-320mAh | 3.7 | 320 | 13.9 X 28.0 | |
| Lithium-ion ternary battery 1-3C | 26650C-4200mAh | 3.7 | 4200 | 26.0 X 65.2 |
| 26650C-4000mAh | 3.7 | 4000 | 26.0 X 65.2 | |
| 26500C-3200mAh | 3.7 | 3200 | 26.0 X 50.2 | |
| 26500C-3000mAh | 3.7 | 3000 | 26.0 X 50.2 | |
| 22650C-3200mAh | 3.7 | 3200 | 22.0 X 65.2 | |
| 22650C-3000mAh | 3.7 | 3000 | 22.0 X 65.2 | |
| 18650C-2200mAh | 3.7 | 2200 | 18.0 X 65.2 | |
| 18650C-2000mAh | 3.7 | 2000 | 18.0 X 65.2 | |
| 18650C-1800mAh | 3.7 | 1800 | 18.0 X 65.2 | |
| 18650C-1500mAh | 3.7 | 1500 | 18.0 X 65.2 | |
| 18650C-1300mAh | 3.7 | 1300 | 18.0 X 65.2 | |
| 18500C-1500mAh | 3.7 | 1500 | 18.0 X 50.2 | |
| 18500C-1400mAh | 3.7 | 1400 | 18.0 X 50.2 | |
| 18500C-1200mAh | 3.7 | 1200 | 18.0 X 50.2 | |
| 18350C-850mAh | 3.7 | 900 | 18.0 X 35.0 | |
| 18350C-800mAh | 3.7 | 850 | 18.0 X 35.0 | |
| 16500C-1100mAh | 3.7 | 1100 | 16.8 X 50.2 | |
| 14650C-1050mAh | 3.7 | 1050 | 13.9 X 65.2 | |
| 14650C-1000mAh | 3.7 | 1000 | 13.9 X 65.2 | |
| 14500C-800mAh | 3.7 | 800 | 13.9 X 50.2 | |
| 14500C-700mAh | 3.7 | 700 | 13.9 X 50.2 | |
| 14430C-650mAh | 3.7 | 650 | 13.9 X 43.0 | |
| 14430C-550mAh | 3.7 | 550 | 13.9 X 43.0 | |
| Ternary power battery 10-20C | 26650HP-3400mAh | 3.7 | 3400 | 26.0 X 65.2 |
| 22650HP-2000mAh | 3.7 | 2000 | 22.0 X 65.2 | |
| 22430HP-1300mAh | 3.7 | 1300 | 22.0 X 65.2 | |
| 18650HP-1500mAh | 3.7 | 1500 | 18.0 X 65.2 | |
| 18650HP-1300mAh | 3.7 | 1300 | 18.0 X 65.2 | |
| 18500HP-1100mAh | 3.7 | 1100 | 18.0 X 50.2 | |
| 18350HP-600mAh | 3.7 | 600 | 18.0 X 35.0 | |
| 18350HP-700mAh | 3.7 | 700 | 18.0 X 35.0 | |
| 16500HP-800mAh | 3.7 | 800 | 16.8 X 50.2 | |
| 16340HP-600mAh | 3.7 | 700 | 16.8 X 34.0 | |
| 14500HP-650mAh | 3.7 | 650 | 13.9 X 50.2 | |
| lithium iron phosphate battery 1-3C | 26650-Fe-3000mAh | 3.2 | 3000 | 26.0 X 65.5 |
| 18650-Fe-1500mAh | 3.2 | 1500 | 18.0 X 65.2 | |
| 14500-Fe-500mAh | 3.2 | 500 | 13.9 X 50.2 | |
| 14430-Fe-400mAh | 3.2 | 400 | 13.9 X 43.0 | |
| high rate 10C discharge | 18650HP-Fe-1000mAh | 3.2 | 1000 | 18.0 X 65.2 |
