| Place of Origin: | CHINA |
| Brand Name: | maxpower |
| Certification: | UL IEC EN61951 |
| Model Number: | 1/3BBB 200mah |
| Minimum Order Quantity: | 100pks |
|---|---|
| Price: | negociate |
| Packaging Details: | 20pcs/box, 480pcs/ctn |
| Delivery Time: | 3-30days according the qty |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300000pcs/day |
| Material: | NI-MH | SIZE: | 1/3bbb |
|---|---|---|---|
| Capacity: | 200mAh | Voltage: | 3.6V |
| Type: | NI-MH Rechargeable Battery | Internal Iedance: | ≤30mΩ |
| Advantage: | Ready To Use | ||
| Highlight: | 200mAh NIMH Rechargeable Batteries,1/3BBB NIMH Rechargeable Batteries,UL NIMH Rechargeable Batteries |
||
UL custom NIMH battery pack 1/3bbb 200 mAh 3.6v battery
with CB IEC/EN61951 certification MSDS certificate
1. The nimh battery pack is Ready To Use and low self discharge technology to keep stable working performance
2. High capacity in this size single cell is 1/3BBB 3 cells in stick shape
3. OQC report and Lab testing offered before battery delivery to keep tracking records
4. Safety battery struction and maintenance free cyle life more than 500 cycles
5. MSDS UN38.3 CB IEC DG License for overseas air sea and courier delivery We have
the door to door delivery service globally for the custom battery packs .
Specification of the nimh 3.6V 200mah custom battery pack:
| Rated Capacity: | 200mah |
| Minimal Capacity: | 190mah |
| Standard Charge: | 20mA, 16hrs |
| Rapid Charge: | 100mA,2.4 hrs (control required) |
| Continuous Discharge: | 100mA,2.4 hrs (control required) |
| Final Discharge Voltage: | 100mA,2.4 hrs (control required) |
| Weight: | 4.6g (Approx) |
| Service Life: | more than 500 cycles |
| (according to IEC discharge characteristics standard) | |
| Internal Resistance: | ≤70mΩ |
| Ambient Temperature: | |
| Standard charge: | 0 ~45℃ |
| Rapid charge: 0 ~40℃ | 0 ~40℃ |
| Discharge: -20 ~ 50℃ | minus 20-50℃ |
| Store : | (65+20% RH) |
The custom nimh battery pack is safety desigh with mature technology to keep your
project runs smoothly
A.Safety-- gas hole: advanced secondary explosion-proof design
B. Nical plated steel shell and positive cap: irove the charging efficiency, anti-corrosion
C. Enviromental friendly material: All materials passed the ROHS certification.
Sale delivery: 3 -4days.
Mass production period: 10-15days
The 200mah nimh battery pack 3.6V charge and Discharge curve:
The nimh battery pack safety testing :
Over discharge: 0.1C charge for 48hrs No conspicuous deformation and/or leakage.
Charge reserve: Standard charge Storage: 28 days Standard discharge (0.2C) ≥180min
Humidity: Standard charged, stand for 10 days at 33±3℃ and 80±5% of relative humidity No leakage
External Short Circuit: After standard charge, short-circuit the cell at 20 ℃ ± 5 ℃ until the cell teerature returns to ambient teerature.(cross section of the wire or connector should bemore than 0.75mm2) No fire and no
explosion
Vibration Resistance: Charge of voltage should be under 0.08V/pack, change of iedance should be under20milli-ohm/cell.
Drop Test: △V<0.02V/cell △Ri<5%/cell Charge at 0.1C for 16hrs,and then leave for 24hrs,check battery before / after drop
| Size | Model No. | Nominal Voltage (V) | Nominal Capacity(mAh) | Dimension with Tube | Weight Approx.(g) | |
| Diameter(mm) | Height(mm) | |||||
| AAA | H-2/3AAA300 | 1.2 | 300 | 10.5 | 29.0 | 8.5 |
| H-2/3AAA350 | 1.2 | 350 | 10.5 | 29.0 | 9 | |
| H-AAA650A | 1.2 | 650 | 10.5 | 44.5 | 12 | |
| H-AAA700A | 1.2 | 700 | 10.5 | 44.5 | 12.5 | |
| H-AAA900 | 1.2 | 900 | 10.5 | 44.5 | 14 | |
| H-AAA1000 | 1.2 | 1000 | 10.5 | 44.5 |
16 |
|

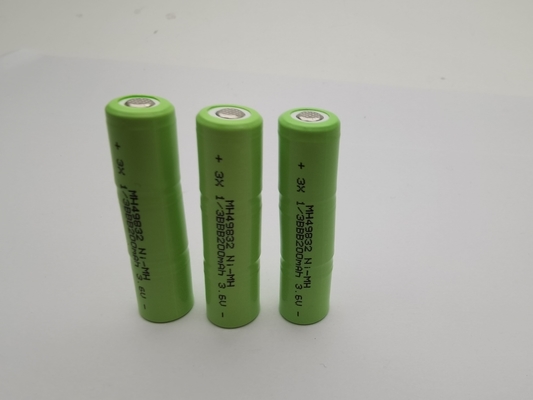

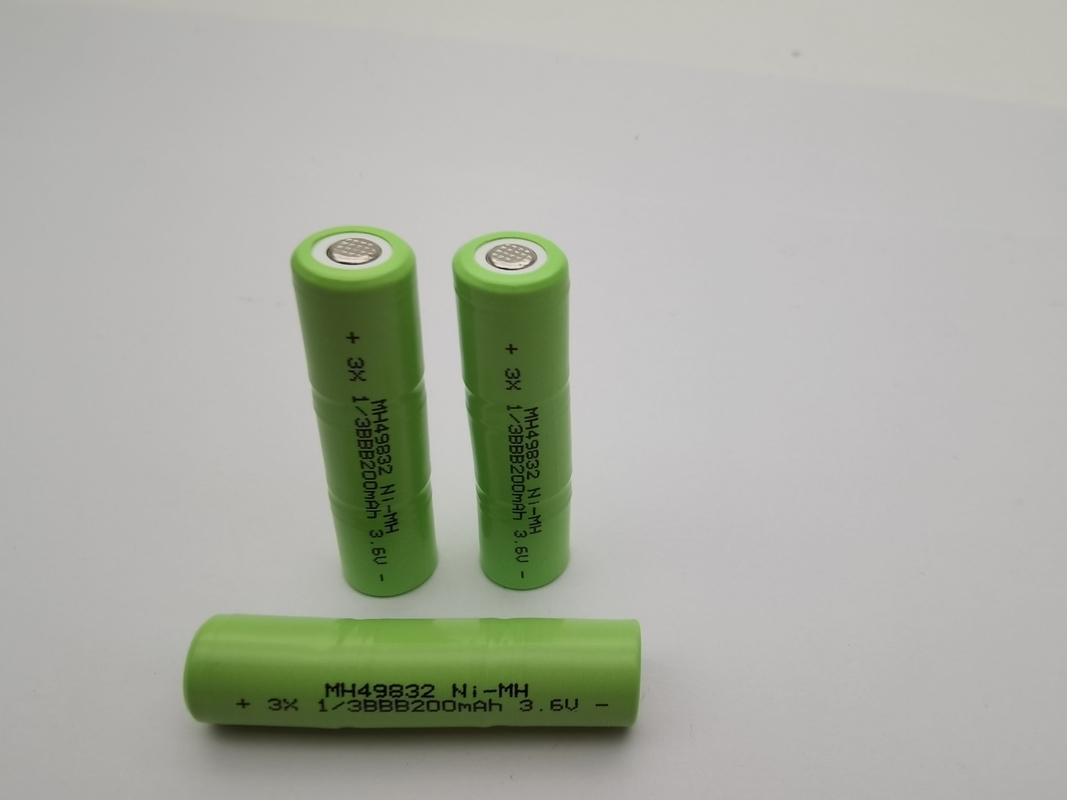

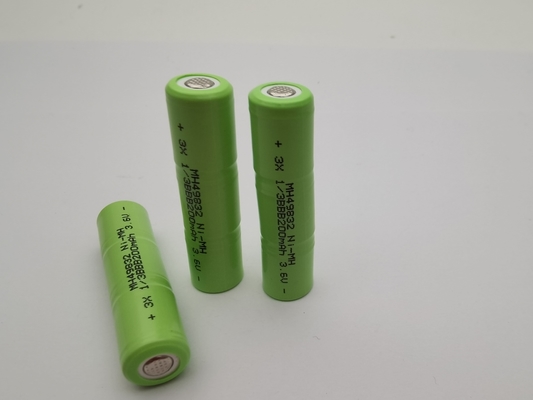

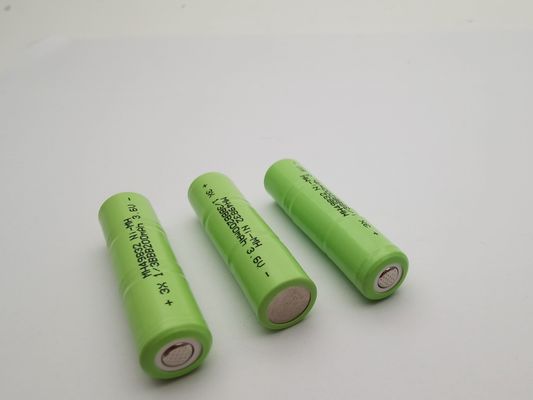

3.6V 1/3bbb 200mah nimh battery package picture
