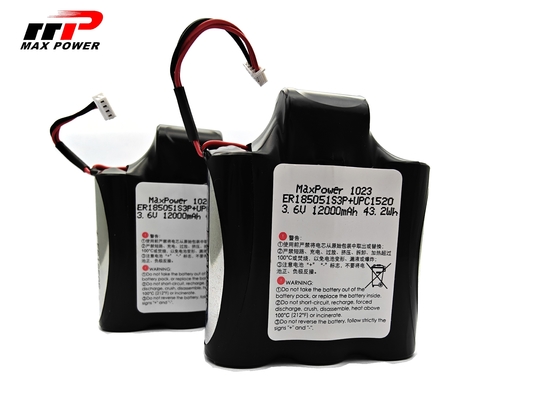

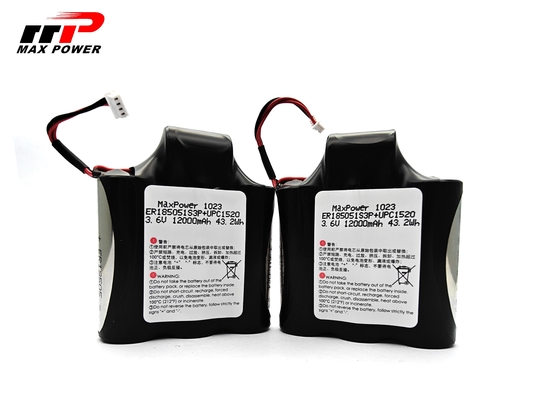

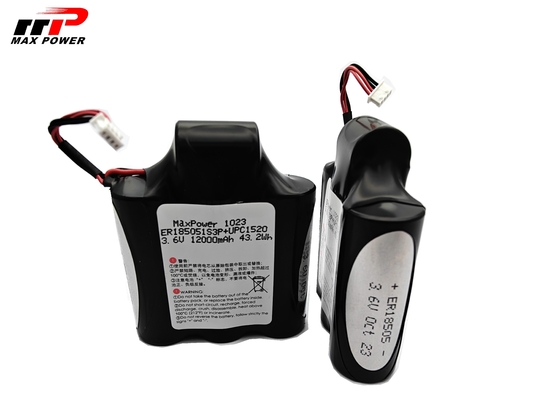

Name: Car Tracker Use 3.6V 12.3Ah ER18505 Plus HPC1520 Lisocl2 Primary Lithium Ion Battery 10 Years Shelf Life
Brand: MAXPOWER INDUSTRIAL CO.,LTD
SKU: ER18505 150mAh 3.6V
Price: negotiable USD
Availability: InStock

Home Products Lithium Ion Rechargeable Batteries

Car Tracker Use 3.6V 12.3Ah ER18505 Plus HPC1520 Lisocl2 Primary Lithium Ion Battery 10 Years Shelf Life

Product Details:

Place of Origin:	China
Brand Name:	MaxPower
Certification:	CE ROHS MSDS DG License
Model Number:	ER18505 150mAh 3.6V

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiation
Packaging Details:	Export Carton , Export wooden case, 463287313mm（UN Carton),12.5kg, 40set/carton
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	50000 PCS Per Day

Contact Now

Detailed Product Description

Battery Type:	Lithium Thionyl Chloride Battery	Battery Capacity:	12.3Ah
Voltage:	3.6V	Size:	Diameter : 56mm*Height : 67mm
Weight:	105g	Shelf Life:	10 Years
Highlight:	Car Tracker Lithium Ion Battery , Lisocl2 Primary Lithium Ion Battery , Lithium Ion Battery 3.6V 12.3Ah

Primary Li-ion battery 3.6V ER18505+HPC1520 12.3Ah Lithium LiSoCl2 Battey D Size

High density green energy primary Battery 3.6V 12.3Ah High puls LiSoCl2 Cell
Anti Corrosion primarty 18505 size with stable operation voltage and reliable performance
Ultra long shelf life with 10 years Self discharge rate less than 1% per year
Special Customized construction is available for different applications
Automatic production line strict OQC to ensure high end quality Maintenance Free
Ultra pulse Capacitor connect with battery to eliminate voltage delay increase current capacity

Non rechargeable Lithium ion battery ER18505 HPC1520 3.6V 12.3Ah LiSoCl2 Cell Specification :

LiSoCl2 Primary Lithium Battery 3.6V 12.3Ah HPC1520
China Primary Lithium Battery Manufacture	Maxpower
Norminal Capacity	12.3Ah
Norminal Voltage	3.6V
Cell Dimension	Diamter 56mm*Height 67mm
Weight	102g
Max. continous Discharge	80mA
Max.pulse discharge	150mA
Working Current	-55 to 85 degree
Shelf Life	10 years
Sale lead time	5-7 working days
Production lead time	15-20 working days

3.6V Primary Lithium Ion battery Application :

GPS TRACKER, Water meter Battery ,Ammeter Battery ,Gas meter Battery , Monitor battery , Medical devices Battery

Primary Li-ion battery Li-SoCl2 Battery With High Capacity:

Model	Specification	Size φmm*mm	Weight(g)	Voltage V	Capacity/Current(mAh/mA)	Max. discharge Current(mA)	working terature ℃	Cut off Voltage V
ER14250H	1/2AA	φ14.5*25.2	9	3.6	12001.0	20	-55~+85	2.0
ER14335	2/3AA	φ14.5*33.5	13	3.6	16501.0	40	-55~+85	2.0
ER14505H	AA	φ14.5*50.5	18	3.6	26001.0	50	-55~+85	2.0
ER17335	2/3A	φ17.0*33.5	18	3.6	19001.0	50	-55~+85	2.0
ER17505	A	φ17.0*50.5	24	3.6	36002.0	70	-55~+85	2.0
ER18505H	--	φ18.5*50.5	30	3.6	40002.0	70	-55~+85	2.0
ER26500H	C	φ26.2*50.0	53	3.6	85002.0	100	-55~+85	2.0
ER261020H	CC	φ26.2*102.0	101	3.6	160002.0	150	-55~+85	2.0
ER34615H	D	φ34.2*61.5	103	3.6	190002.0	150	-55~+85	2.0
ER341245H	DD	φ34.2*124.5	200	3.6	3600010	300	-55~+85	2.0

Li-SoCl2 Battery With High Power High Discharge Rate :

Model	Specification	Size φmm*mm	Weight(g)	Voltage V	Capacity/Current(mAh/mA)	Max. discharge Current(mA)	working terature ℃	Cut off Voltage V
ER14250M	1/2AA	φ14.5*25.2	10	3.6	7501.0	100	-55~+80	2.0
ER14335M	2/3AA	φ14.5*33.5	13	3.6	13502.0	150	-55~+80	2.0
ER14505M	AA	φ14.5*50.5	19	3.6	21003.0	300	-55~+80	2.0
ER17335M	2/3A	φ17.0*33.5	19	3.6	17003.0	200	-55~+80	2.0
ER17505M	A	φ17.0*50.5	26	3.6	28005.0	400	-55~+80	2.0
ER18505M	--	φ18.5*50.5	30	3.6	35005.0	500	-55~+80	2.0
ER26500M	C	φ26.2*50.0	57	3.6	600010	1000	-55~+80	2.0
ER34615M	D	φ34.2*61.5	109	3.6	1300015	1800	-55~+80	2.0
