| Place of Origin: | China |
| Brand Name: | PANASONIC |
| Certification: | CE,ROHS, UL |
| Model Number: | VL2330 3.0V |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | white / gift box/ blister card |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1, 000, 000PCS |
| Highlight: | 50mAh Primary Lithium Battery,Long-lasting Performance Primary Lithium Battery,3.0V Primary Lithium Battery |
||
|---|---|---|---|

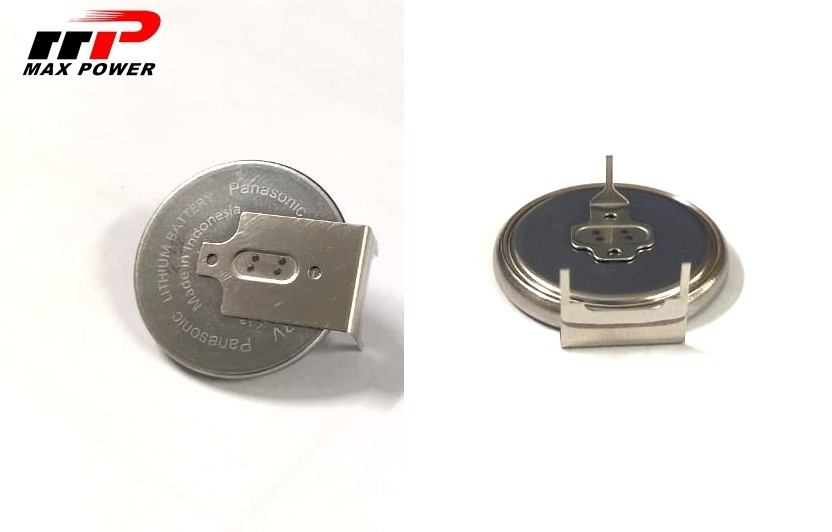

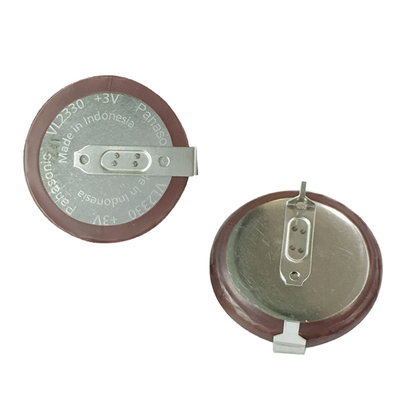

VL2330 3.0V Primary Lithium Battery LiMnO2 50mAh Button Cell
Quick Detail:
Rated Capacity: 50mAh
Nominal Voltage: 3.0V
Type: LiMnO2
Operating Teerature: -40 ℃ to 60 ℃
Long shelf life: 5 years
SIZE: 23*3.0MM
Specifications:
| Bitmap | MAXPOWER INDUSTRIAL CO.LTD |
| -LiMnO2 CR2330 Lithium battery | |
| Model | -LiMnO2 CR2330 3.0V |
| Nominal Voltage | 3.0V |
| Rated Capacity | 50mAh |
| Working voltage | 3.0V at 2.0mA discharge |
| Discharge cut off voltage | 2.0 V |
| Max Dimension | 23.0*3mm (Diameter*Height) |
| Max continuous discharge current | 50mA |
| Volume | 8.0 cubic centimeters |
| Lithium content | Less than 1 gram per cell |
| Weight | Approx 1.2 g |
| Working teerature | -40 ℃ to 60 ℃ |
| Storage teerature | -20 ℃ to 40 ℃ |
| Storage humidity | ≤ 75% |
| Storage life |
5 years |
The note regarding the storage:
Application:
Widely used for: car key, e-dictionary, digital watch, toys, digital clock, Glucose meter, Electronic thermometer,caculator etc.
MORE BUTTON CELL MODELS FOR YOUR CHOICE:
| model | Nominal voltage | Nominal capacity | advice use current | advice use current(gap) | diameter | height | standard weight | |
| CR927 | 3V | 30mAh | 0.1mA | 3mA | 9.5mm | 2.70mm | 0.6g | |
| CR1025 | 3V | 30mAh | 0.1mA | 5mA | 10.0mm | 2.50mm | 0.6g | |
| CR1130 | 3V | 48mAh | 0.1mA | 5mA | 11.6mm | 3.00mm | 0.6g | |
| CR1212 | 3V | 18mAh | 0.1mA | 5mA | 12.5mm | 1.20mm | 0.5g | |
| CR1216 | 3V | 25mAh | 0.1mA | 5mA | 12.5mm | 1.60mm | 0.7g | |
| CR1220 | 3V | 40mAh | 0.1mA | 5mA | 12.5mm | 2.00mm | 0.85g | |
| CR1225 | 3V | 48mAh | 0.1mA | 5mA | 12.5mm | 2.50mm | 1.3g | |
| CR1616 | 3V | 50mAh | 0.1mA | 8mA | 16.0mm | 1.60mm | 1.2g | |
| CR1620 | 3V | 70mAh | 0.2mA | 8mA | 16.0mm | 2.00mm | 1.2g | |
| CR1625 | 3V | 90mAh | 0.2mA | 8mA | 16.0mm | 2.50mm | 1.4g | |
We give OEM service according your appliction(here are some tags models for your referance)
CELL ORIGINAL PACKAGE:
Coetitive Advantage:
