| Place of Origin: | KOREA/CHINA |
| Brand Name: | MP |
| Certification: | PSE, KC, CB, UL,BIS,IEC62133,MSDS,UN38.3 |
| Model Number: | 18650 MF1 |
| Minimum Order Quantity: | 200PCS/ORDER |
|---|---|
| Price: | negotiate |
| Packaging Details: | 180pcs/pallet/ctn |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500000pcs/day |
| Material: | Li-ion | Color: | Purple Sleeve |
|---|---|---|---|
| Voltage: | 3.7V | Capacity: | 2200mAh |
| Cycle Life: | 1000times | Size: | D18mm*H65mm |
| Weight: | 49g | Maxdischarge: | 10A |
| Highlight: | INR18650MF1 Lithium Ion Rechargeable Batteries,INR18650MF1 Li Ion Battery Cell,INR18650MF1 |
||

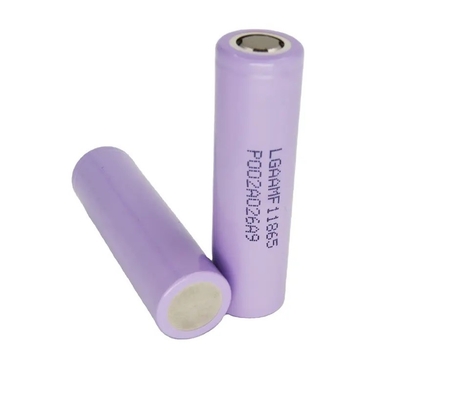

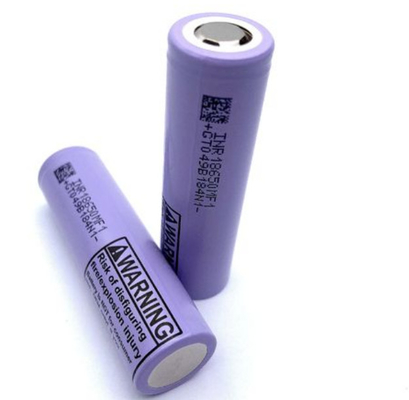

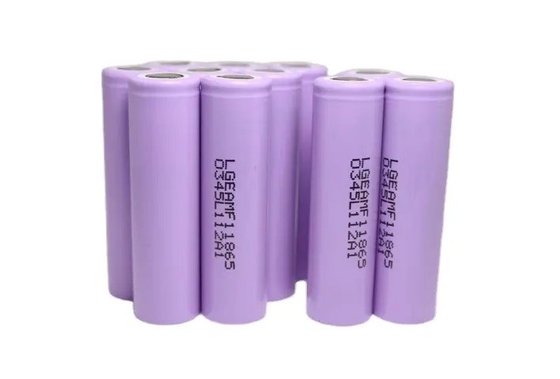

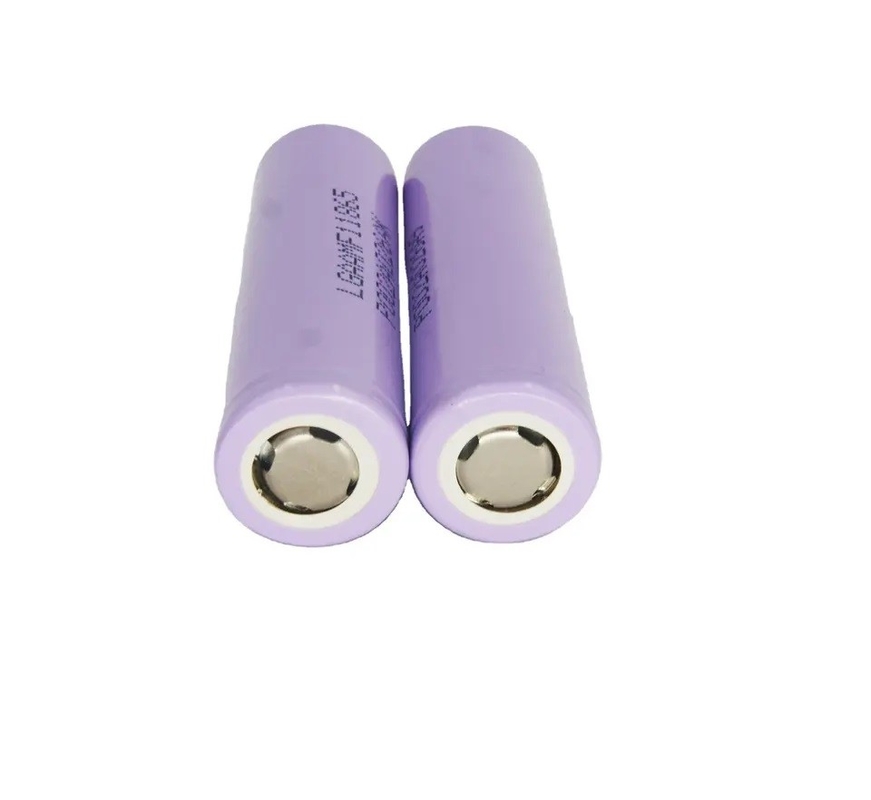

INR18650MF1 2250mAh Lithium Ion Rechargeable Batteries Grade A Cell
Grade A Original MP INR18650 MF1 3.7V 2150mAh Rechargeable Li-ion Battery cell.
Best for the OEM packs for vacuum cleaner, sweeping robot, lawnmower,rpower tools,E-bike,
Light EV , RC hobbies customized battery packs
1. High capacity, advanced tecnical process by auto machine, same voltage and low inner resistance.
Very good performance to do industial pack.
2. High energy density and longer working time.
3. Light weight with small size. D18mm*H65mm
4. No memory effect, good discharge ability and high load and resist high teerature
6. Pollution free for environmental protection
7. 100% original Japan Panasonic li-ion rechargeable battery, 1year quality insurance.
8. Good anti-explosion protection and circuit protection inside.
9. With UL, CE, KC,CB, PSE certification .
10. Original 18650 Battery Provider Agency
MP 18650MF1 lithium ion battery Specification info.:
More details about the MP MF1 battery :
| No | Item | Condition/ Note | Specification |
| 1 | Capacity | Std. charge / discharge ( Refer to 1.1./ 1.2) | Nominal 2,150 mAh (Cnom) |
| Minimum 2,050 mAh (Cmin) | |||
| 2 | Nominal Voltage | Average for Std. discharge | 3.65V |
| 3 | Standard Charge (Refer note 1.1) | Constant current | 0.5C (1,075mA) |
| Constant voltage | 4.2V | ||
| End condition(Cut off) | 50mA | ||
| 4 | Max. Charge Voltage | 4.2V | |
| 5 | Max. Charge Current | 1.0C(2,150mA) | |
| 6 | Standard Discharge(Refer to 1.2) | Constant current | 0.2C (430mA) |
| End voltage(Cut off) | 2.75V | ||
| 7 | Max. Discharge Current | 10A | |
| 8 | Max. Teerature Limit | Max. discharge current at RT | 75℃ |
| 9 | Weight | Approx. | 44.0 g |
| 10 | Operating Teerature | Charge 0 ~ 45℃ | |
| Discharge -20 ~ 60℃ | |||
| 11 | Storage Teerature (for shipping statei) | 1 month | -20 ~ 60℃ |
| 3 month | -20 ~ 45℃ | ||
| 1 year | -20 ~ 20℃ |
original MP18650MF1 battery testing info.:
Related iort cell list:
| BRAND | size/capacity/rate | Colors | Rate |
| 18650 battery models | PVC tube | continue dicharge | |
| SAMSUNG | 18650-22PM 10A/5C | purple | mid-rate cell |
| 18650-26JM 2C | pink purple | capacity cell | |
| 18650-26HM 2C | pink purple | capacity cell | |
| 18650-29ET 10A/3.5C | blue | mid-rate cell | |
| 18650-35ET 10A/3C | purple | mid-rate cell | |
| 18650-25RM 20A/8C | green | high rate cell | |
| 18650-30Q 15A | purple | high rate cell | |
| MP | B4L-2600mAh | light grey | capacity cell |
| MF1-2200mAh 10A/5C | purple | mid-rate cell | |
| F1L-3350mAh | purple | capacity cell | |
| M26-2600mAh 10A/3.9C | purple | mid-rate cell | |
| MG1-2600mAh 10A/3.4C | dark red | mid-rate cell | |
| MH1-3200mAh 10A/3C | blue | mid-rate cell | |
| MJ1-3500mAh 10A/3C | green | mid-rate cell | |
| HB3-1500mAh 22A/14C | grey | high rate cell | |
| SANYO | 16650ZTA-2500mAh | purple | capacity cell |
| 18650AA-2200mAh | red | mid-rate cell | |
| 18650NSX-2600mAh 20A/8C | red | high rate cell | |
| 18650ZY-2600mAh | red | capacity cell | |
| 18650ZTA-3000mAh | red | capacity cell | |
| 18650BF-3400mAh | red | capacity cell | |
| 18650GA-3500mAh | red | mid-rate cell | |
| PANASONIC | 18650PF-2900mAh 10A | green | mid-rate cell |
| 18650BD-3200mAh-8A | grey | mid-rate cell | |
| 18650BD-3200mAh-8A | grey | mid-rate cell | |
| 18650BM-3200mAh-3.87A | green | capacity cell | |
| 18500A-2030mAh | green | mid-rate cell | |
| 18650B-3400mAh 4.87A | green | capacity cell | |
| SONY | 索尼VC3-1900mAh 18A/10C | green | high rate cell |
| 18650VT3-1600mAh 20A/12.5C | green | high rate cell | |
| Bostoon | Bostoon 5300 | green | mid-rate cell |
Packing Info.
Color box /Blister box
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 18pcs/blister/ctn
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Battery Delivery DG Code: UN3480 IMO Class : 9
Garrantee:
We keep fresh production data within half of year and keep quality guarantee one year .
