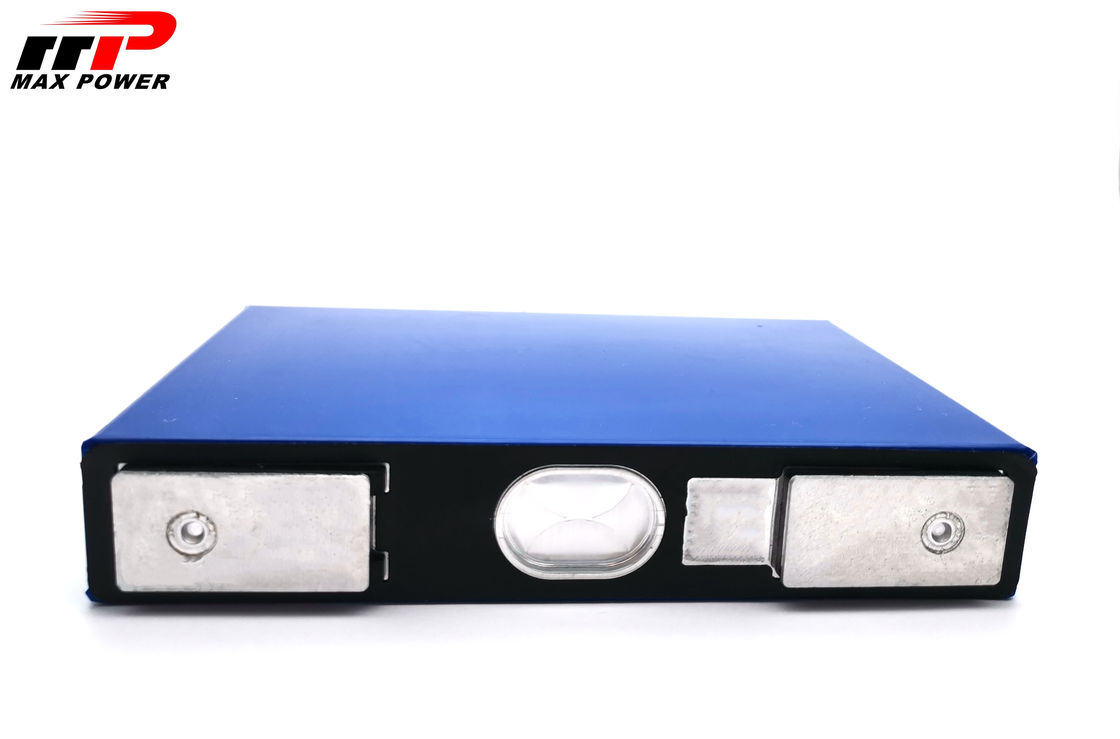

| Place of Origin: | China |
| Brand Name: | CATL |
| Certification: | CE,ROHS, UL,SGS,REACH |
| Model Number: | NCM27E892 50Ah 3.7V |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | negotiation |
| Packaging Details: | 24pcs/ctn |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1, 000, 000PCS/week |
| Application: | HEV Car, Electric Motorcycle | Cycle Life: | 6000times |
|---|---|---|---|
| Size: | T*W*L=27*148*92mm | Weight: | 0.84kgs |
| Warrantee: | 1year | Application: | Solor Starage Yacht RV 5G Ups Telecom Station Golf Cart Forklift Sweeper Airport Tractor Energy Storage |
| Highlight: | 6000 cycle lithium ion battery,50ah lithium ion polymer battery |
||
Quick details:
1. Size: T*W*L=27*148*92mm
2. Nominal Voltage: 3.7V
3. Nominal Capacity: 50Ah
4. Weight: 0.84KGS
5. Standard charging ways: CC / CV
6. Lithium Ion / Li-ion rechargeable battery cell
Description:
OEM Service:
We can make packs based on customer requirements, such as
3.2V (Lifepo4)--- 5AH/10AH/15AH/20AH/30AH/40AH/50AH/60AH/100AH/105AH110AH/120AH/200AH ETC.
3.7V (Li-ion) --50Ah 60Ah 70Ah 80Ah 90Ah 100Ah
12V- 60Ah,16V-120Ah, 48V-12Ah,
48V- 60Ah
60V,72V, 220V.....
Application:
Specifications:
| No | ITEMS | Spec. | condition |
| 1 | Typical Capacity | 50AH | 0.2CA discharge≥50AH |
| 2 | Nominal voltage | 3.65V | |
| 3 | Initial Iedance | ≤0.8mΩ | |
| 4 | End-of-discharge Voltage | 3.0V | |
| 5 | Standard Charge current | 10A | 0.2CA charge to 4.20V |
| 6 | SIZE | 27*148*92mm | |
| 7 | Standard Charge voltage | 4.2V | |
| 8 | Max Charge voltage | 4.25V | |
| 9 | Fast charge current | 50A 1C | 1C, CC, CV charge to 4.20V |
| 10 | max Charge current | 50A 1C | CC, CV charge to 4.20V |
| 11 | max discharge current | 100A 2C | CC discharge to 3.0V |
| 12 | Weight | 0.85Kg | |
| 13 | Working Teerature | charge | 0~+45℃ |
| discharge | -20~+60℃ | ||
| 14 | Storage Teerature | <6months -20~+45℃ | Transport teerature 20℃ |
| >6month -20~+35℃ |
More HEV car /storage Rechargeable Batteries models:
| NO. | Models | Dimensions(mm) D*W*H | Weight(KG) | Life cycles (Times) | Warranty | |
| Votage | Capacity | |||||
| 1 | 3.2V | 10Ah | 17*79*135 | 0.55 | 6000 | 5years |
| 2 | 3.2V | 25Ah | 20*100*140 | 0.95 | 6000 | 5years |
| 3 | 3.2V | 40Ah | 26*135*170 | 1.33 | 6000 | 5years |
| 4 | 3.2V | 42Ah | 27*147*147 | 1.33 | 6000 | 5years |
| 5 | 3.2V | 50Ah | 32*173*148 | 1.42 | 6000 | 5years |
| 6 | 3.2V | 60Ah | 32*174*148 | 1.65 | 6000 | 5years |
| 7 | 3.2V | 75Ah | 48*174*128 | 2.12 | 6000 | 5years |
| 8 | 3.2V | 80Ah | 48*173*126 | 2.12 | 6000 | 5years |
| 9 | 3.2V | 86Ah | 48*173*126 | 2.12 | 6000 | 5years |
| 10 | 3.2V | 92Ah | 29*174*203 | 2.1 | 6000 | 5years |
| 11 | 3.2V | 100Ah | 34*200*168 | 2.78 | 6000 | 5years |
| 12 | 3.2V | 120Ah | 48*173*166 | 2.84 | 6000 | 5years |
| 13 | 3.2V | 140Ah | 46*200*168 | 3.1 | 6000 | 5years |
| 14 | 3.2V | 160Ah | 72*174*138 | 3.46 | 6000 | 5years |
| 15 | 3.2V | 176Ah | 54*173*200 | 3.82 | 6000 | 5years |
| 16 | 3.2V | 200Ah | 71*173*166 | 5 | 6000 | 5years |
| 17 | 3.2V | 240Ah | 71*173*200 | 5 | 6000 | 5years |
| 18 | 3.2V | 271Ah | 71*173*200 | 5.4 | 6000 | 5years |
For more please contact me freely, wish more than 13years experiences in battery field can help you out.
