| Place of Origin: | KOREA/CHINA |
| Brand Name: | MP |
| Certification: | PSE, KC, CB, UL |
| Model Number: | 18650 MJ1 |
| Minimum Order Quantity: | 1000PCS/ORDER |
|---|---|
| Price: | negotiate |
| Packaging Details: | 180pcs/pallet/ctn |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500000pcs/day |
| Material: | Li-ion | Color: | Green Sleeve |
|---|---|---|---|
| Voltage: | 3.7V | Capacity: | 3500mAh |
| Cycle Life: | 1000times | Size: | D18mm*H65mm |
| Weight: | 49g | Maxdischarge: | 10AH |
| Highlight: | li ion rechargeable batteries,lithium ion aa rechargeable battery |
||

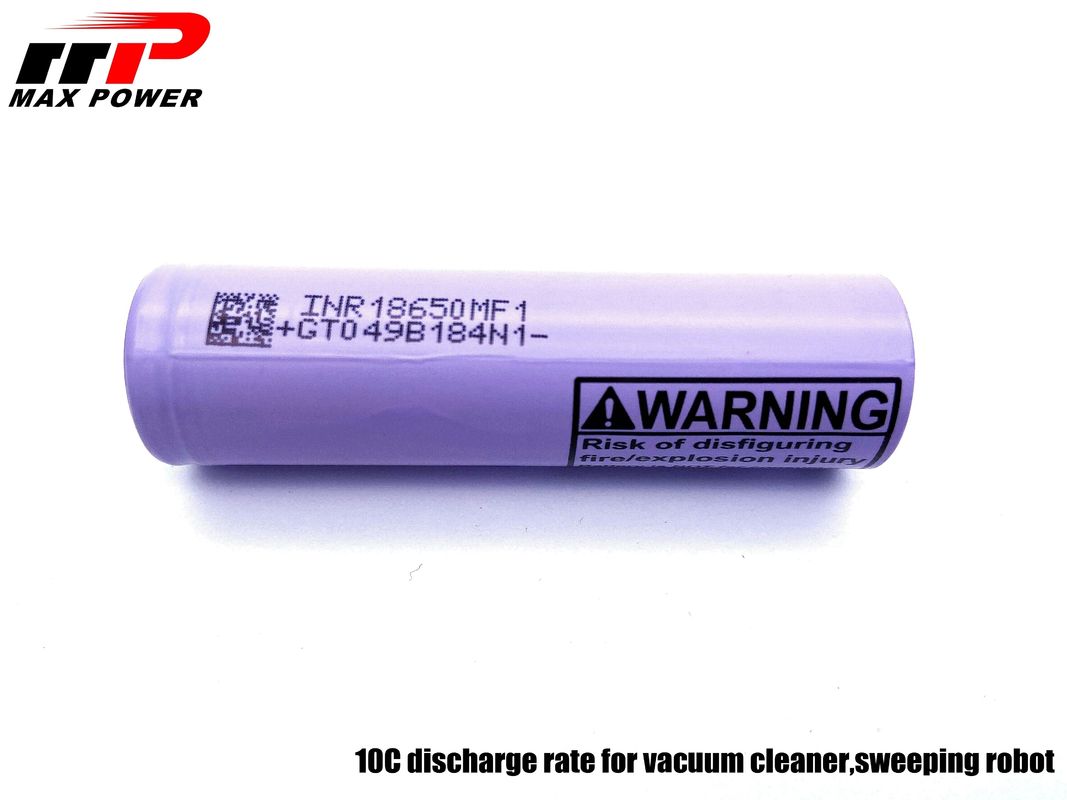

100% Original MP INR18650 MF1 3.7V 2150mAh Rechargeable Li-ion Battery cell.
Can do OEM packs for vacuum cleaner, sweeping robot, lawnmower,rpower tools,E-bike,
Light EV , RC hobbies customized and more...
Feature:
1. High capacity, advanced tecnical process by auto machine, same voltage and low inner resistance.
Very good performance to do industial pack.
2. High energy density and longer working time.
3. Light weight with small size. D18mm*H65mm
4. No memory effect, good discharge ability and high load and resist high teerature
6. Pollution free for environmental protection
7. 100% original Japan Panasonic li-ion rechargeable battery, 1year quality insurance.
8. Good anti-explosion protection and circuit protection inside.
9. With UL, CE, KC,CB, PSE certification .
10. Original 18650 Battery Provider Agency
MP 18650MF1 Size info.:
Specification:
| No | Item | Condition/ Note | Specification |
| 1 | Capacity | Std. charge / discharge ( Refer to 1.1./ 1.2) | Nominal 2,150 mAh (Cnom) |
| Minimum 2,050 mAh (Cmin) | |||
| 2 | Nominal Voltage | Average for Std. discharge | 3.65V |
| 3 | Standard Charge (Refer note 1.1) | Constant current | 0.5C (1,075mA) |
| Constant voltage | 4.2V | ||
| End condition(Cut off) | 50mA | ||
| 4 | Max. Charge Voltage | 4.2V | |
| 5 | Max. Charge Current | 1.0C(2,150mA) | |
| 6 | Standard Discharge(Refer to 1.2) | Constant current | 0.2C (430mA) |
| End voltage(Cut off) | 2.75V | ||
| 7 | Max. Discharge Current | 10A | |
| 8 | Max. Teerature Limit | Max. discharge current at RT | 75℃ |
| 9 | Weight | Approx. | 44.0 g |
| 10 | Operating Teerature | Charge 0 ~ 45℃ | |
| Discharge -20 ~ 60℃ | |||
| 11 | Storage Teerature (for shipping statei) | 1 month | -20 ~ 60℃ |
| 3 month | -20 ~ 45℃ | ||
| 1 year | -20 ~ 20℃ |
NOTE:
1.1 Standard Charge
Unless otherwise specified, “Standard Charge” shall consist of charging at constant current of 1,075mA.
The cell shall then be charged at constant voltage of 4.2V while tapering the charge current. Charging
shall be terminated when the charging current has tapered to 50mA. For test purposes, charging shall be
performed at 25ºC ± 2ºC.
1.2 Standard Discharge
“Standard Discharge” shall consist of discharging at a constant current of 430mA to 2.75V. Discharging is
to be performed at 25 ºC ± 2 ºC unless otherwise noted (such as capacity versus teerature).
More pic of the MP18650MF1
Related iort cell list:
| BRAND | size/capacity/rate | Colors | Rate |
| 18650系列 | PVC tube | continue dicharge | |
| SAMSUNG | 18650-22PM 10A/5C | purple | mid-rate cell |
| 18650-26JM 2C | pink purple | capacity cell | |
| 18650-26HM 2C | pink purple | capacity cell | |
| 18650-29ET 10A/3.5C | blue | mid-rate cell | |
| 18650-35ET 10A/3C | purple | mid-rate cell | |
| 18650-25RM 20A/8C | green | high rate cell | |
| 18650-30Q 15A | purple | high rate cell | |
| MP | B4L-2600mAh | light grey | capacity cell |
| MF1-2200mAh 10A/5C | purple | mid-rate cell | |
| F1L-3350mAh | purple | capacity cell | |
| M26-2600mAh 10A/3.9C | purple | mid-rate cell | |
| MG1-2600mAh 10A/3.4C | dark red | mid-rate cell | |
| MH1-3200mAh 10A/3C | blue | mid-rate cell | |
| MJ1-3500mAh 10A/3C | green | mid-rate cell | |
| HB3-1500mAh 22A/14C | grey | high rate cell | |
| SANYO | 16650ZTA-2500mAh | purple | capacity cell |
| 18650AA-2200mAh | red | mid-rate cell | |
| 18650NSX-2600mAh 20A/8C | red | high rate cell | |
| 18650ZY-2600mAh | red | capacity cell | |
| 18650ZTA-3000mAh | red | capacity cell | |
| 18650BF-3400mAh | red | capacity cell | |
| 18650GA-3500mAh | red | mid-rate cell | |
| PANASONIC | 18650PF-2900mAh 10A | green | mid-rate cell |
| 18650BD-3200mAh-8A 中性 | grey | mid-rate cell | |
| 18650BD-3200mAh-8A 印字 | grey | mid-rate cell | |
| 18650BM-3200mAh-3.87A | green | capacity cell | |
| 18500A-2030mAh | green | mid-rate cell | |
| 18650B-3400mAh 4.87A | green | capacity cell | |
| SONY | 索尼VC3-1900mAh 18A/10C | green | high rate cell |
| 18650VT3-1600mAh 20A/12.5C | green | high rate cell | |
| Bostoon | Bostoon 5300 | green | mid-rate cell |
Packing Info.
Color box /Blister box
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 18pcs/blister/ctn
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Battery Delivery DG Code: UN3480 IMO Class : 9
Garrantee:
MP coany garrantee for 1 year.
For more info. Please feel free to contact me in any way below, hope 12years of battery area working experance can help you out.
