| Place of Origin: | Made in China |
| Brand Name: | Maxpower/OEM |
| Certification: | CB, CE, KC, ROHS, UN38.3 |
| Model Number: | 115070 5000mAh |
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 16pcs/blister palet, 20bllister pallet/ctn |
| Delivery Time: | 10-30days according stock situation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200000pcs/day |
| Material: | Lithium Polymer,pure Cobalt | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 5000mAh | Contant Discharge Current: | 0.2C-1C |
| Resistance: | ≤ 40 MΩ | Dimensions(T.W.H.): | Thickness: 11.5 Mm Max, Width: 50.5 Mm Max, Length: 73.0 Mm Max |
| Connector: | JST-PH-2P | Wire: | 3302 22# |
| Highlight: | high capacity lithium polymer battery,high power lipo battery |
||
Long Life Cycles High Capacity Power Bank Lithium Polymer Battery 115070P 5000mah 3.7V UL, CB, KC IEC62133 certified
1. Products info and draw.
2. Cell specification and safty performance.
| No. | Items | Specifications | Remark | |
| 1 | Nominal Capacity | 5000mAh | 0.2C Standard discharge | |
| 2 | Minimum Capacity | 5000mAh | ||
| 3 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| 4 | Delivery voltage | 3.8~4.05V | Within 10 days from Factory | |
| 5 | Charge Voltage | 4.2V±0.03V | By standard charge method | |
| 6 | Standard charging method | 0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C | 0.2C CC 4.2VCC charge to C≤0.01C | |
| 7 | Charge current | 0.2C | 1000mA | Standard charge, charge time:6.5h(Ref) |
| 0.5C | 2500mA | Rapid Charge, charge time:3.5h(Ref) | ||
| 8 | Standard discharging method | 0.2C constant current discharge to 2.75V | 0.2C CC DISCHARGE TO 2.75V | |
| 9 | Cell Internal Iedance | ≤40mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| 10 | Maximum charge current | 0.5C | For continuous charging mod | |
| 11 | Max Continuous discharge current | 0.5C | Peak discharge current 1C | |
| 12 | Rated Capacity at 0.2C(Min.) | After standard charge, the capacity shall be measured on 0.2C discharge till the voltage discharge to 3.0V, ≥5000mAh | ≥100% | |
| 13 | Rated Capacity at 0.2C(Min.) | After standard charge, the capacity shall be measured on 0.2C discharge till the voltage discharge to 3.0V, | Retention capacity ≥98% | |
| 14 | Rated Capacity at 1C(Min.) | After standard charge, the capacity shall be measured on 1C discharge till the voltage discharge to 3.0V, | Retention capacity≥95% | |
| 15 | Cycle Life | Charging and discharging battery as blew conditions : 0.2C standard discharge to 2.75V cut-off. Continuous charge and discharge for 500 cycles, the capacity will be measure after the 500th cycle | ≥80% of initial capacity | |
| 16 | Capacity retention | The battery to be charge in accordance with standard charge condition at 20~25℃,then storage the battery at an ambient teerature 20~25℃ for 28 days. | Retention capacity ≥85% | |

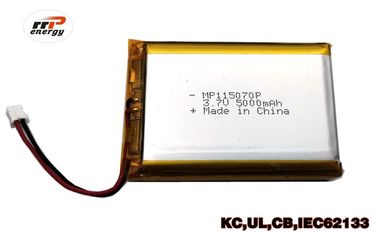

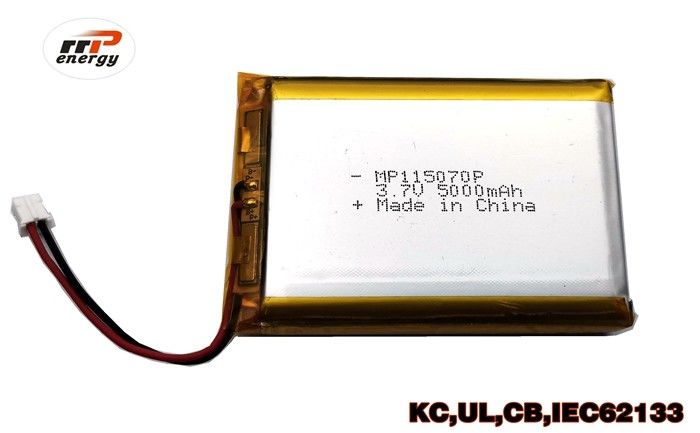

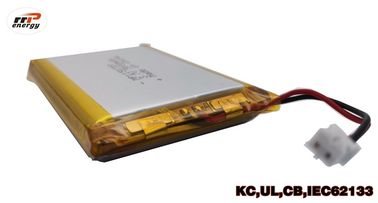

3. More PIC of 115070 battery.
The customized connectors we normally use:
The packing of the polymer battery:
The application of this polymer battery: (For medical device....)
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
Q&a;A:
1. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strictly test and high teerature,high voltage life ageing as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sale orders. In 3-5days will be ready the sales, then you test.We make the standard according the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
.
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
