| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | UN38.3 MSDS IEC CE |
| Model Number: | SC1600mAh HT |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | export carton ,export pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 30000PCS Per Day |
| Battery Type: | NICAD Rechargeable Battery | Voltage: | 1.2V |
|---|---|---|---|
| Capacity: | 1600mAh | Weight: | 46g |
| Cycle Life: | More Than 500 Cycles | Quality Guarantee: | 2 Years |
| Highlight: | nickel cadmium battery,nicd battery cells |
||

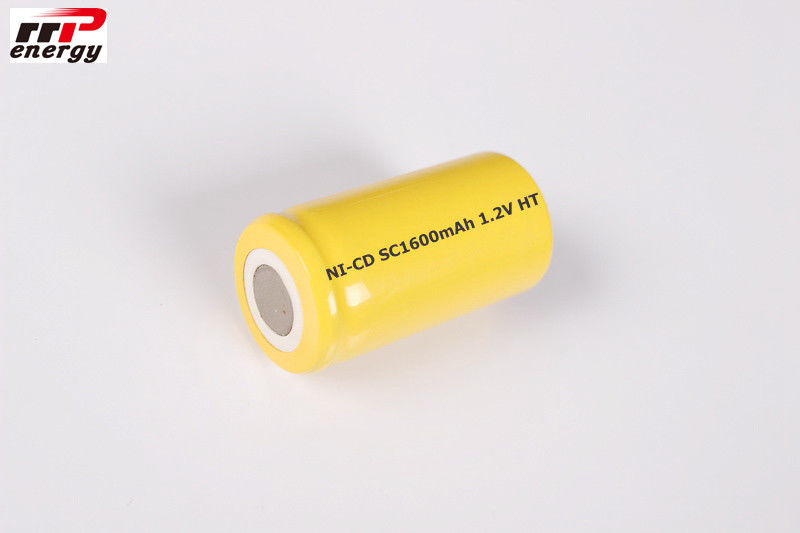

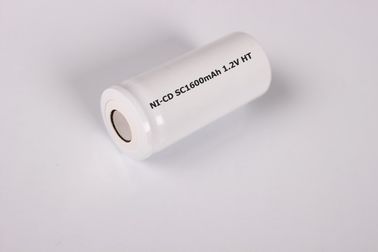

NICD Battery Cell Sub C 1600mAh 1.2V Main Benefit :
Permanent Charge ,good charge efficiency at High teerature ,Superior Robustness Long life duration
Custom designed and standardised battery packs for your battery design and system needs .
1.2V SC1600mAh NiCad battery designed for emergency lighting
Safety design with overcharged function best for Emergency fixture module
high teerature 55 degree 70 degree stable charge and discharge performance
Customized battery pack with long cycle life 2 years quality guarantee
100% in house quality checking and high teerature aged lab testing
battery cell meet the Korea KFI and Euro IECL1010 Testing standard
MSDS UN38.3 support the air sea and courier door to door service
NICD 1.2V SC1200mAh battery cell specification :
Sub C NICD cell size :SC (φ23.0-1.0×43.0-1.5)
| Description | Unit | Specification | Conditions | |
| Nominal Voltage | V/Cell | 1.2V | Unit cell | |
| Nominal Capacity | mAh | 1600 | Standard Charge/Discharge | |
| Standard Charge | mA | 160(0.1C) | Ambient Teerature | |
| Hour | 16 | Ta= 20±5℃ | ||
| Trickle Charge | (0.03C)~(0.05C) | Ta = 0~45℃ | ||
| Standard discharge | mA | 320(0.2C) | Ambient Teerature | |
| Ta = 20±5℃ | ||||
| Humidity:Max :85% | ||||
| Discharge Cut-off Voltage | V/Cell | 1 | ||
| Operating teerature range | ℃ | 0~55℃ | Humidity:Max :85% | |
| Storage Teerature | ℃ | -20~35℃ | one Year | Fully charged state,Humidity,Max.60% |
| 0~60℃ | One week | Fully charged state,Humidity,Max.80% | ||
| Typical Weight | g | Approx. 46.0 | ||
Application : Emergency lighting , Backup Systems,Security Devices
