| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | UN38.3 MSDS CB CE BIS |
| Model Number: | 18650 3.7V 2600mah |
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Package ,wooden package ,pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30000 per day |
| Battery Type: | Rechargeable Li-ion Battery | Voltage: | 7.4v |
|---|---|---|---|
| Capacity: | 2600mAh | Dimension: | Width :37mm Length :66mm Height :17mm |
| Cycle Life: | More Than 500 Cycles | Guarantee: | 12months |
| High Light: | 3.7V 18650 li-ion battery,2600mah 18650 li-ion battery,6.4v 18650 li-ion battery |
||
2024 CB UN38.3 lithium battery 6.4v 3.7V 18650 2600mah 18650 li-ion battery cell 18650 custom battery
High capacity grade A lithium battery 2600mAH custom battery pack
support fast charge and high rate discharge
Wide working temperature to support -40 to 85 degree
Provide both single cell and battery packs with PCM
Past strict testing with high temperature , low temperature ,over
charge and discharge testing , 1.2M drop testing and short-circuit testing .
Stable quality performance out daily 18650 cells to be 300000PCS per day .
Full deliery and export documents and certificate for global customer delivery and custom
clearance

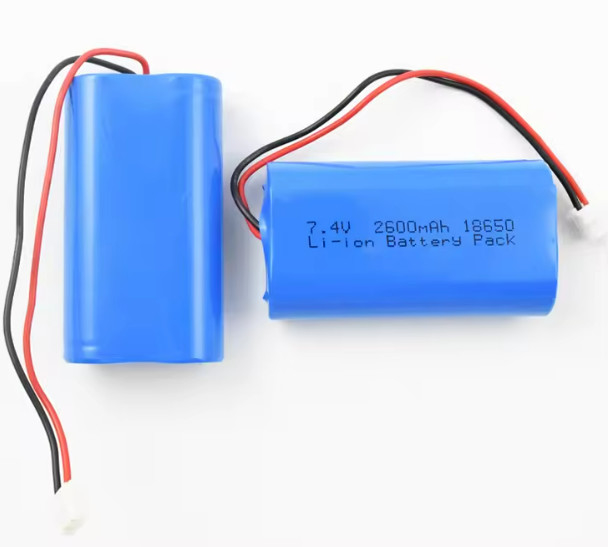

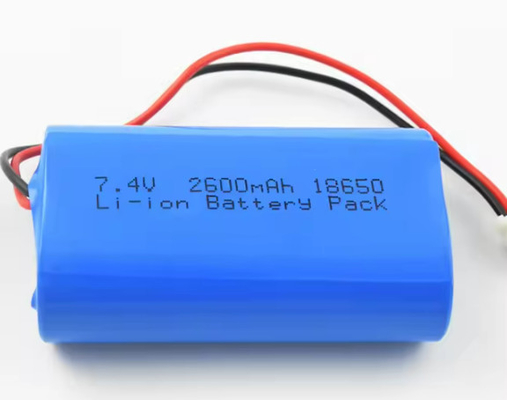

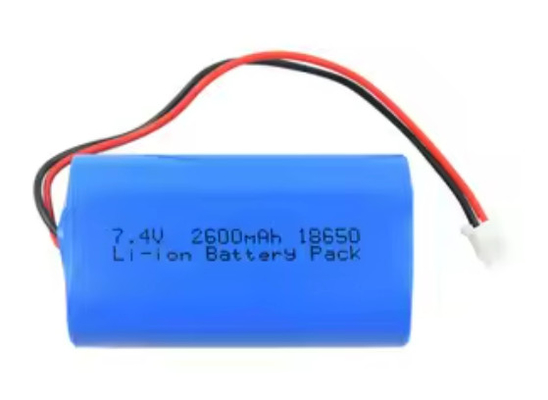

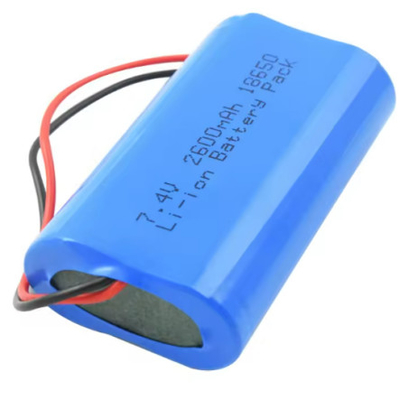

The 7.4V custom lithium ion battery pack Specification :
| Product Name: | 7.4V Li-ion battery pack |
| Model NO.: | MP 18650 6.4V 2600mah |
| Model NO.: | 18650-2S1P |
| Voltage: | 7.4V |
| Capacity: | 2600MAH |
| Maximal charging current: | 1A-2A |
| constant discharge current: | ≤2A(small current discharge) |
| peak discharge current: | ≤7A |
| Life of battery: | About 500-800 times cycle |
| Charging temperature(℃): | 0℃~45℃;32oF~113oF |
| Discharging temperature(℃): | -20℃~60℃;-4oF~149oF |
| Storage temperature(℃): | -20℃~45℃;-4oF~113oF |
| Dimensions(mm): | 37(T) x 66(W) x 18(H) mm |
| Weight(Kg) | About 600g |
| Over charger protection voltage(V): | 8.4V±0.05V |
| Over discharge protection voltage(V): | 6.0V±0.25V |
| Protection Temperature(℃): | 85℃±5℃ |
| Warranty: | 12 month (free) |
| Requirements: | With label, plug,connector, OEM accept. |
| Specification: | High capacity, high discharge long work,life long,save and environmental protection. |
| Application: Wifi device,communication device,medical equipment,instrument,led lamps, transportation sign,portable family appliance, electronical tools and toys etc. | |
If you are interested in this battery pack or want to custom your battery pack ,contact us directly .
Email : Lucy@maxpowersz.com
Whatsapp: 0086-13714669620
What we can do to support for your custom battery project :
1. Multi-model and multi-specification available for option
2. 3.7v -96v Battery pack to be customized
3. Quick quote and fast reply to support sample request and drawing
4. Use the grade A quality and original lithium ion battery cell
5. Air or sea delivery support door to door courier battery service
More lithium ion battery and custom battery pack models , contact our sales manager Lucy now .
Email : Lucy@maxpowersz.com
Whatsapp: 0086-13714669620
Skype : XuXuLucy114
| No. | Cell Model | Production description | Constant discharge Rate | Standard Capacity | Min. Capacity | Internal resistance |
| 1 | 18650 Cylindrical Cell | 18650 MP-1900 1500mAh 15C Discharge rate | 20A | 1500mAh | 1450mAh | ≤18mΩ |
| 2 | 18650 Cylindrical Cell | 18650 MP-1320 2000mAh 3C Discharge rate | 6A | 2000mAh | 1950mAh | ≤40mΩ |
| 3 | 18650 Cylindrical Cell | 18650 MP-E0300 2000mAh 5C Discharge rate | 10A | 2000mAh | 1950mAh | ≤18mΩ |
| 4 | 18650 Cylindrical Cell | 18650 MP-0800 2000mAh 10C Discharge rate | 20A | 2000mAh | 1950mAh | ≤18mΩ |
| 5 | 18650 Cylindrical Cell | 18650 MP-E0200 2200mAh 3C Discharge rate | 6.6A | 2200mAh | 2150mAh | ≤40mΩ |
| 6 | 18650 Cylindrical Cell | 18650 MP-0508 2200mAh 5C Discharge rate | 11A | 2200mAh | 2150mAh | ≤25mΩ |
| 7 | 18650 Cylindrical Cell | 18650 MP-1700 2500mAh 5C Discharge rate | 12.5A | 2500mAh | 2500mAh | ≤60mΩ |
| 8 | 18650 Cylindrical Cell | 18650 MP-1500 2500mAh 8C Discharge rate | 20A | 2500mAh | 2450mAh | ≤20mΩ |
| 9 | 18650 Cylindrical Cell | 18650 MP-E1610 2600mAh 3C Discharge rate | 7.8A | 2600mAh | 2500mAh | ≤40mΩ |
| 10 | 18650 Cylindrical Cell | 18650 MP-E2100 2900mAh 3C Discharge rate | 10A | 2900mAh | 2750mAh | ≤60mΩ |
| 11 | 18650 Cylindrical Cell | 18650 MP-E2000 3350mAh 1C Discharge rate | 3.35A | 3350mAh | 3250mAh | ≤60mΩ |
| 12 | 21700 Cylindrical Cell | 21700 MP-P2200 3000mAh 10C Discharge rate | 30A | 3000mAh | 2950mAh | ≤20mΩ |
| 13 | 21700 Cylindrical Cell | 21700 MP-E2400 5000mAh 2C Discharge rate | 10A | 5000mAh | 4850mAh | ≤60mΩ |
